SL300 Pinnacle Stairlift

The Pinnacle SL300 is one of our favorite straight stairlifts because it delivers everything most homeowners need in a simple, dependable, and space-saving design. Its patented drive system provides an exceptionally smooth and quiet ride without the grease or maintenance required by many traditional stairlifts, while the compact rail and industry-leading folded profile help preserve valuable staircase space. We also appreciate how easily it can be customized with features like a powered swivel seat, powered footrest, and automatic folding rail, making it a practical solution for a wide range of mobility needs. When you choose Freedom Mobility Solutions, you also receive professional installation, honest recommendations, and local service you can rely on long after your stairlift is installed.

"I wanted something dependable that didn't make my staircase feel cramped, and the Pinnacle SL300 has been exactly that. It's incredibly quiet, easy to use, and the installation team took the time to make sure I was comfortable with everything. Knowing I have a local company to call if I ever need service gives me real peace of mind." – Patricia L., Rockville, MD

    • Most compact folded profile in the industry — rail mounts just 1" from the wall
    • Lubrication free drive system keeps your stairs clean with no grease or mess
    • Operates during a power outage — up to 60 trips on a single battery charge
    • Oversized worm gear provides greater stability and a smoother ride
    • Folds to only 11" from the wall for easy staircase access
    • Comfortable 19" wide seat with 16" depth and supportive backrest
    • Footrest measures 12.6" x 14.8" for secure, comfortable foot placement
    • Travels at 20 feet per minute for safe, controlled movement
    • Works on stair inclines from 27° to 52°
    • Retractable seat belt included for added safety
    • Equipped with an overspeed brake and audible alert system
    • Swivel seat with interlock ensures safe mounting and exiting
    • Footrest obstruction sensor automatically stops the lift if needed
    • Optional chassis obstruction sensor for added safety
    • Optional power footrest and power swivel seat for easier transfers
    • Track lengths available from 15’6" up to 36' for versatile installation
    • Weight capacity: 300 lbs
    • Certified for both residential and commercial use
    • ETL listed and built to ASME A18.1 safety standards
    • Warranty includes 2 year parts, 10 year gear rack, and 1 year battery coverage

The Pinnacle SL300 Straight Stairlift is designed to deliver exceptional comfort while maintaining one of the slimmest folded profiles in the industry. Its ergonomic seat provides supportive cushioning, intuitive controls, and convenient folding features that help keep your staircase open when the lift is not in use. With several available upgrades, the SL300 can be customized to make every ride safer and more convenient.

Seat Features & Options

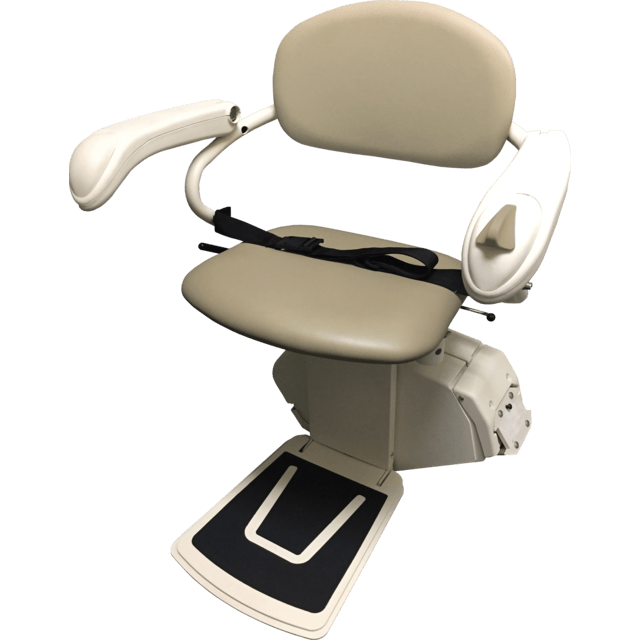

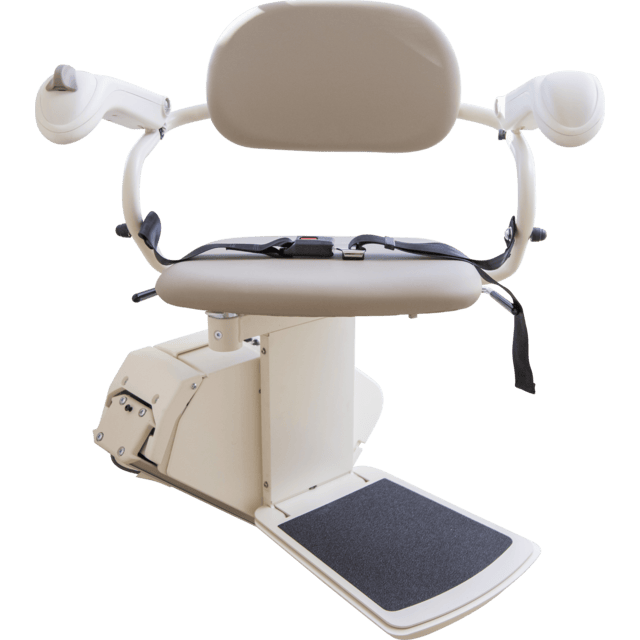

  • Ergonomically designed 19" x 16" padded seat provides comfortable support for everyday use
  • Compact folding seat and oversized folding footrest help maximize available stairway space
  • Industry-leading folded width of just 11 inches from the wall (13.6" with the folding rail option)
  • Standard manual swivel seat locks securely at the upper landing for safer entry and exit away from the staircase
  • Optional Powered Swivel Seat automatically rotates using the ergonomic control switch, reducing twisting and making transfers easier
  • Optional Powered Footrest raises and lowers with the touch of a button, eliminating the need to bend over before or after each ride
  • Adjustable footrest-to-seat height (available with the powered footrest) provides a more customized fit for individual users
  • Ergonomic control switch is easy to operate, making it ideal for users with arthritis or limited hand dexterity
  • Standard seat belt helps keep riders secure throughout every trip

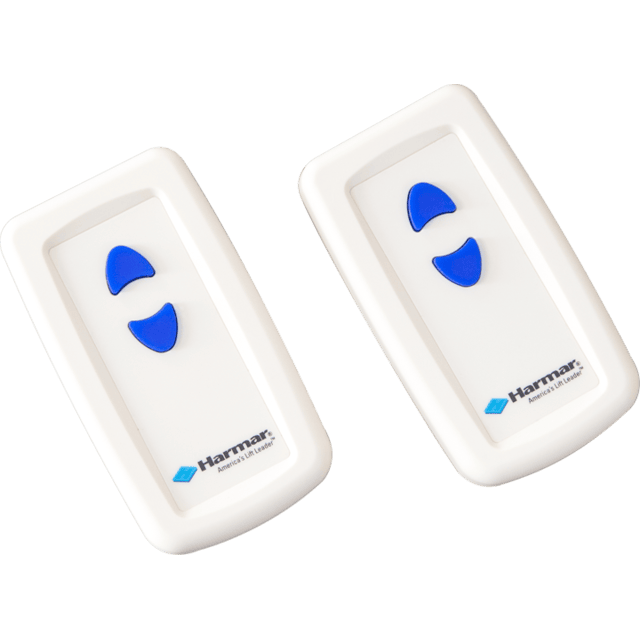

  • Includes two wireless remote controls to conveniently call or send the stairlift between floors
  • Available retractable seat belt option for added convenience
  • Designed to pair with Harmar's compact rail system, keeping your staircase comfortable, safe, and accessible for the entire household
